ZIQIAO for Toyota Yaris 2006 2007 2008 2009 2010 2011 2012 HD Night Vision Rear View Camera HS003

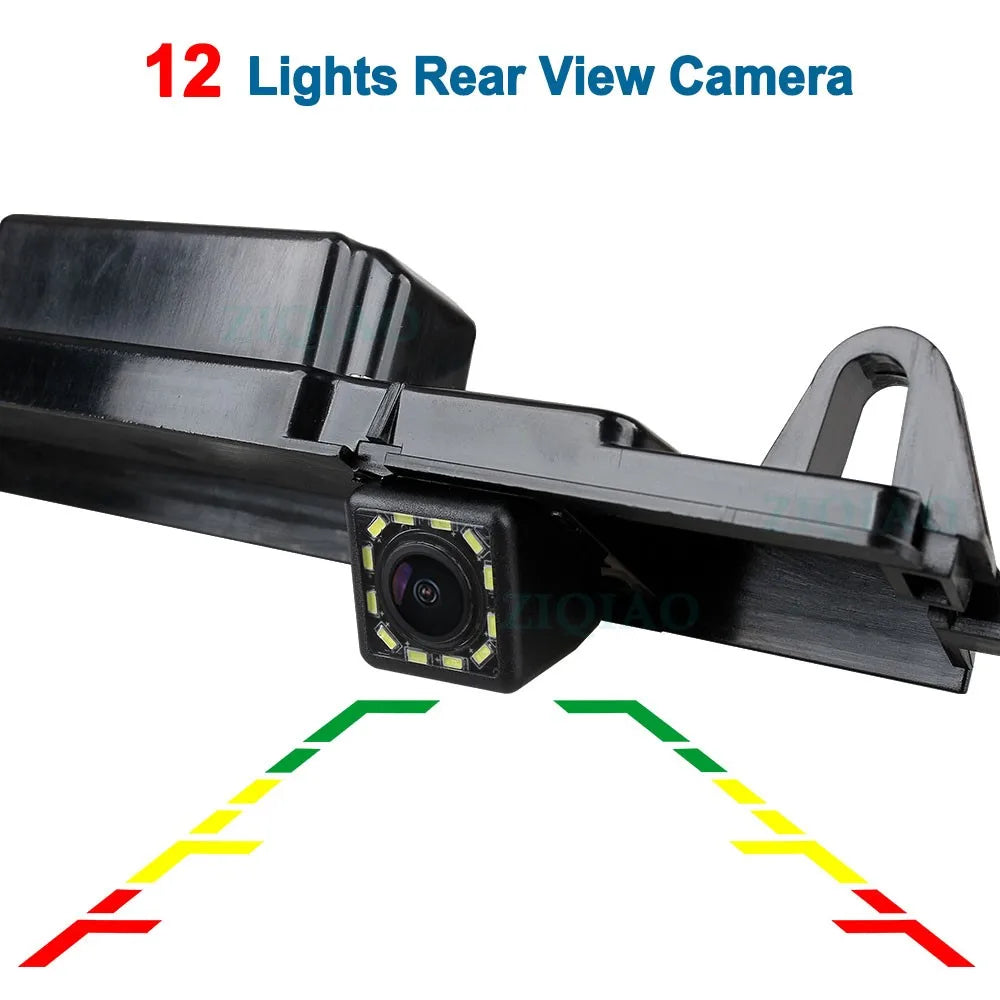

12 LED linear track
GH₵270.54
Sale price
GH₵270.54
Regular price
GH₵0.00
Skip to product information
ZIQIAO for Toyota Yaris 2006 2007 2008 2009 2010 2011 2012 HD Night Vision Rear View Camera HS003
GH₵270.54
Sale price
GH₵270.54
Regular price
GH₵0.00
SPECIFICATIONS
Alarm Type: Vehicle Backup Cameras,ACCESSORIES
Angle: 140-170 degrees
Brand Name: ZQ
Certification: CE
Choice: yes
Feature 1: Yaris camera 2006 2007 2008 2009 2010 2011 2012
Feature 2: Toyota Yaris camera 2006 2007 2008 2009 2010 2011 2012
Feature 3: Toyota Yaris license plate light housing
Feature 4: Yaris parking camera
Feature 5: Dynamic Track Camera
Guiding Line: Yes
High-concerned chemical: None
Image Sensor: CMOS MCCD
Length of Video Cable: 6M
Lens Material: Glass
Material: ABS
Model: HS003 HS003A HS003B HS003D
Origin: Mainland China
Shell Material: Plastic
Signal mode: CVBS
Video format: NTSC
Waterproof: IP68
Wire or Wireless: Wire
semi_Choice: yes

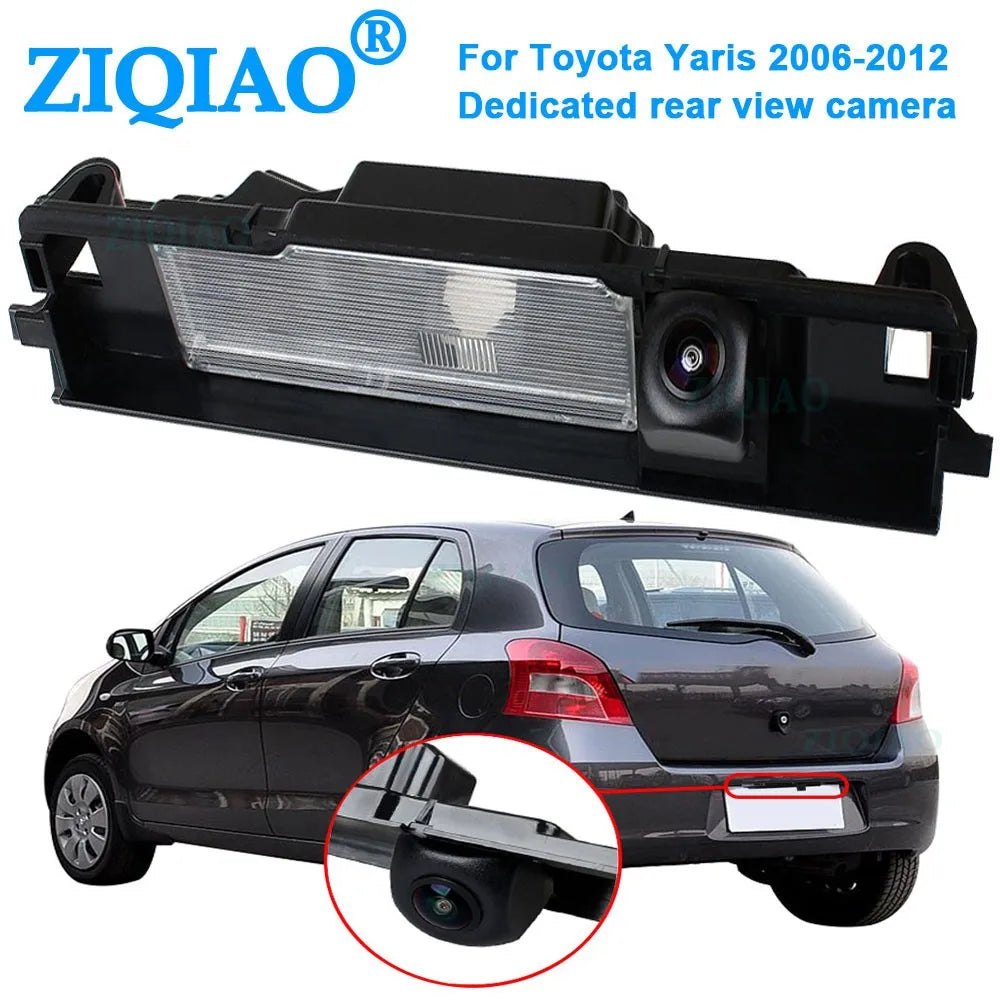

Dedicated License Plate Light Accessories HD Rear View Camera for Toyota Yaris 2006 2007 2008 2009 2010 2011 2012
Important Tips

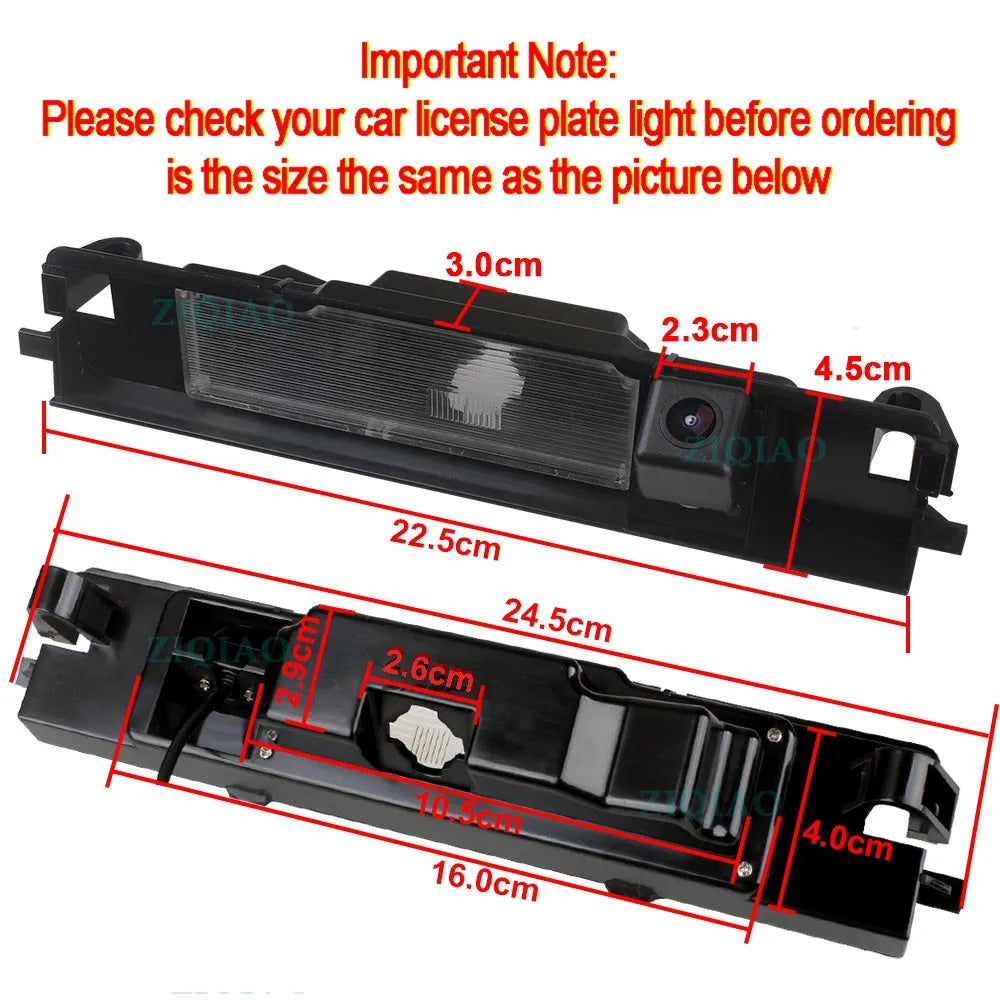

Dear customers, due to different countries or regions of the same model of the car parts may be different, the purchase must be based on your car license plate lights or the original camera shape and size to decide. If you have any questions, please contact us. Otherwise, we will not bear the responsibility of the product and the original car parts do not match!!!
Reference for suitable car models
For Toyota Yaris camera 2006 2007 2008 2009 2010 2011 2012
Specifications
① HS003 HS003D
Signal mode: CVBS
Image sensor: CMOS
Video format: NTSC
White balance: Automatic
AGC and BLC: Automatic
Viewing angle: 140-170 degrees
Pixel: 728 × 512
Clarity: 520 TVLine
Signal to noise ratio: Better than 48db
Working voltage: 12V
Waterproof level: IP68
Working temperature(Deg.C): -30 - +80

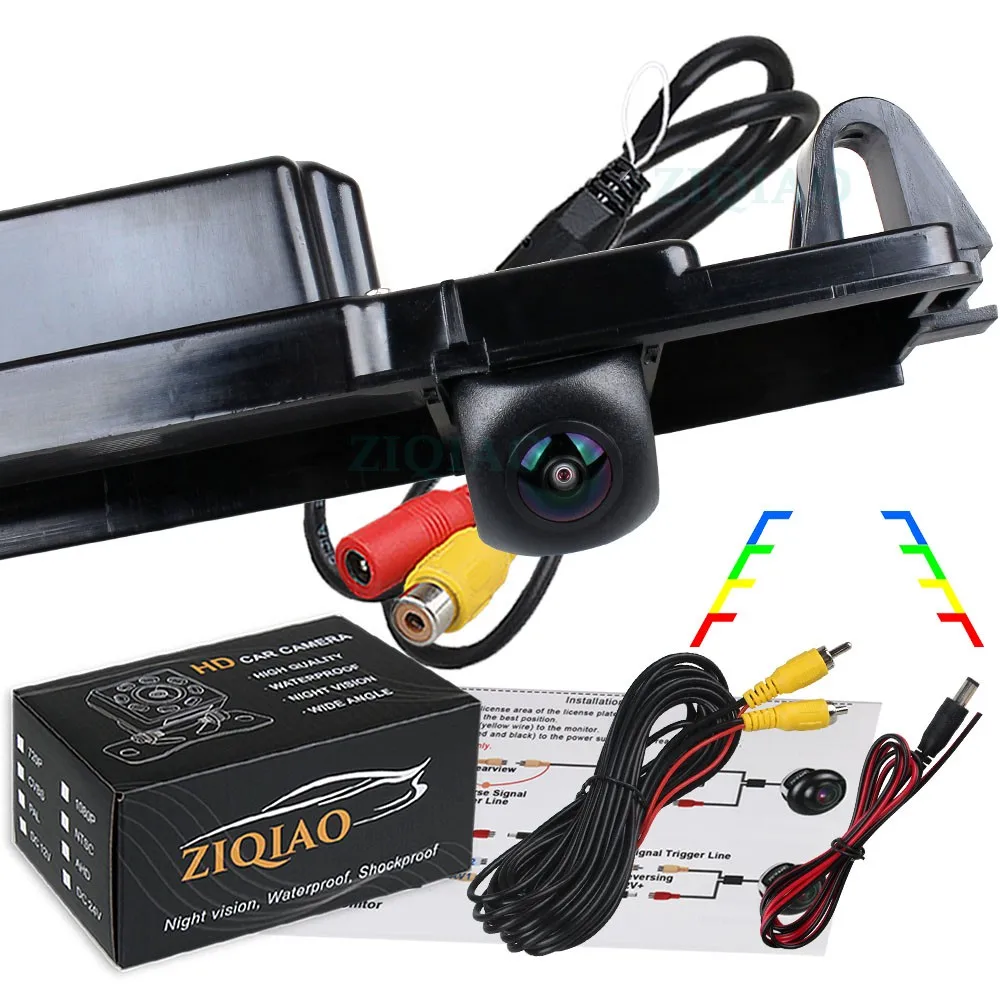

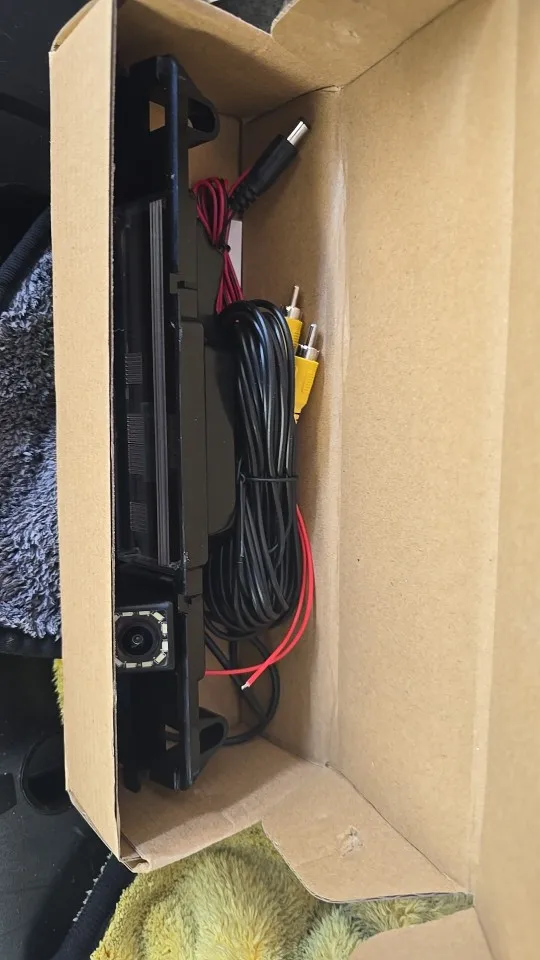

Package Listing
1 x Car rear view camera
1 x 6m Video cable
1 x 1m Power cable
1 x User manual

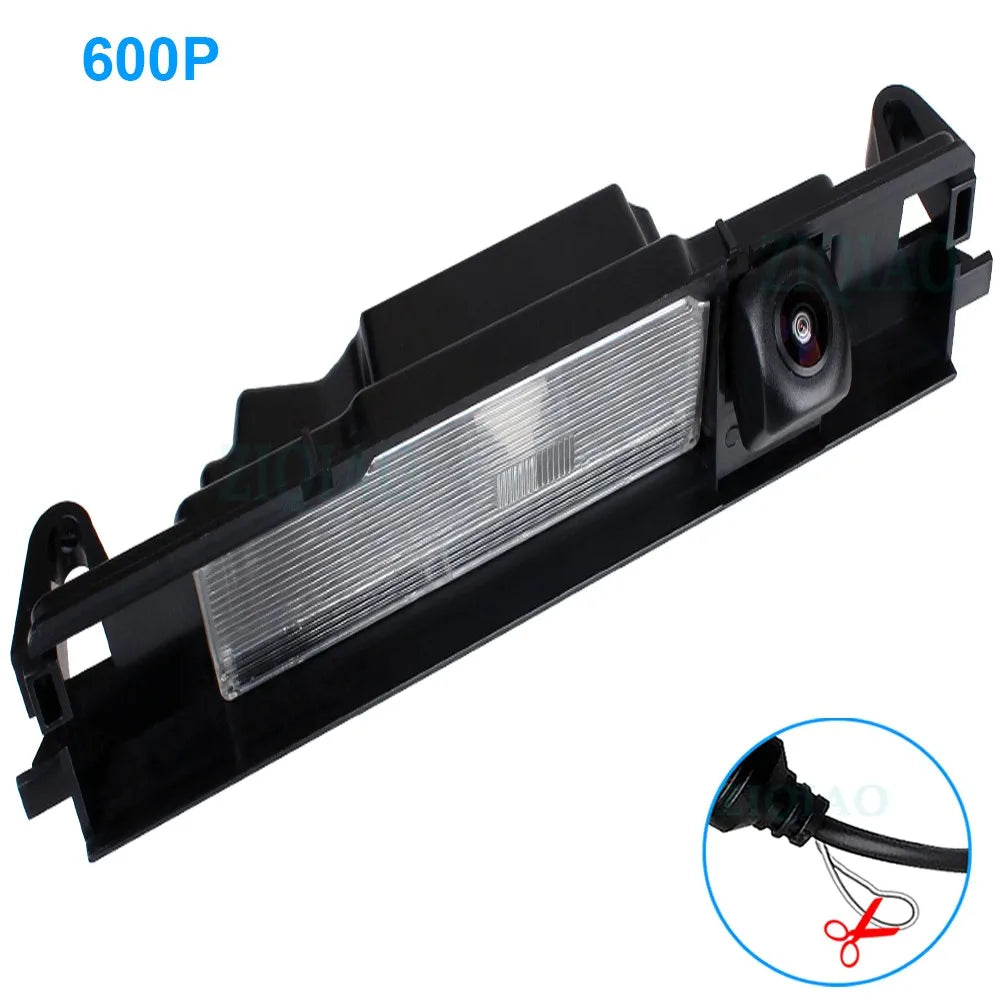

② 600P HS003A
Signal mode: CVBS
Image sensor: CMOS
Video format: NTSC
White balance: Automatic
Viewing angle: 150-170 degrees
Working voltage: DC 12V
Waterproof level: IP68
Video power cable: 6m
Pixel: 1024 × 600
Working temperature(Deg.C): -30 - +80
Package Listing
1 x Car rear view camera
1 x 6m Video power cable
1 x User manual
③ 1080P 720P HS003B
Signal mode: CVBS AHD
Image sensor: AHD
Video format: NTSC AHD
White balance: Automatic
Viewing angle: 160-170 degrees
Working voltage: DC 12V
Waterproof level: IP68
Video power cable: 6m
Pixel: 1080P 720P
Working temperature(Deg.C): -30 - +80
Package Listing
1 x Car rear view camera
1 x 6m Video power cable
1 x User manual
If you need a filter rectifier, let the video signal output normal. Please click on the pictures below to learn about ordering!
When the engine starts, some German cars and American cars will output voltage interference. The power supply of the reversing lamp is not a pure DC power supply. Due to the very high operating voltage, the camera cannot work normally and the video signal output is not normal, so the host can see that there is serious interference, which can not switch the reversing screen normally.
HS003A HS003B

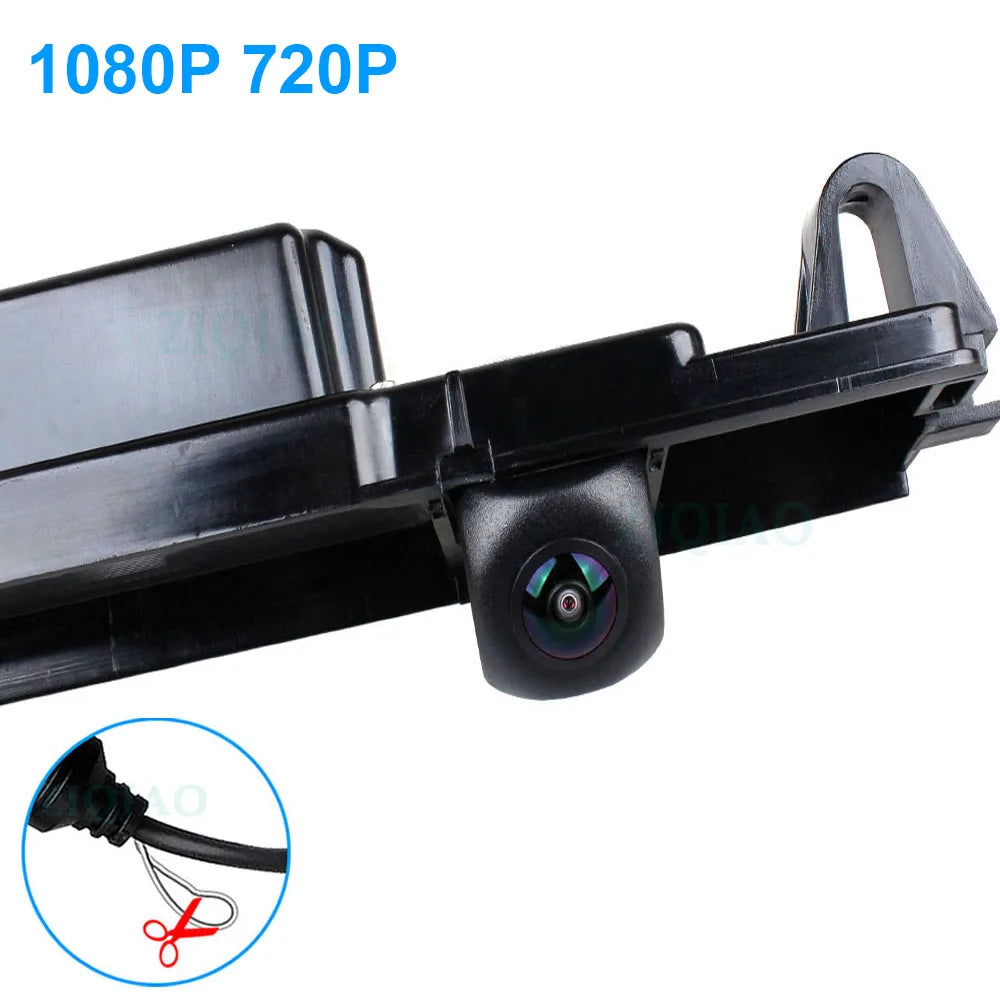

The HS003 HS003A HS003B camera defaults to a rear view camera without parking guide lines.
. If you need a rear view camera without a parking guide line, do not cut the white wire.
. If you need a rear view camera with a parking guide line, cut the white wire.
HS003 HS003D

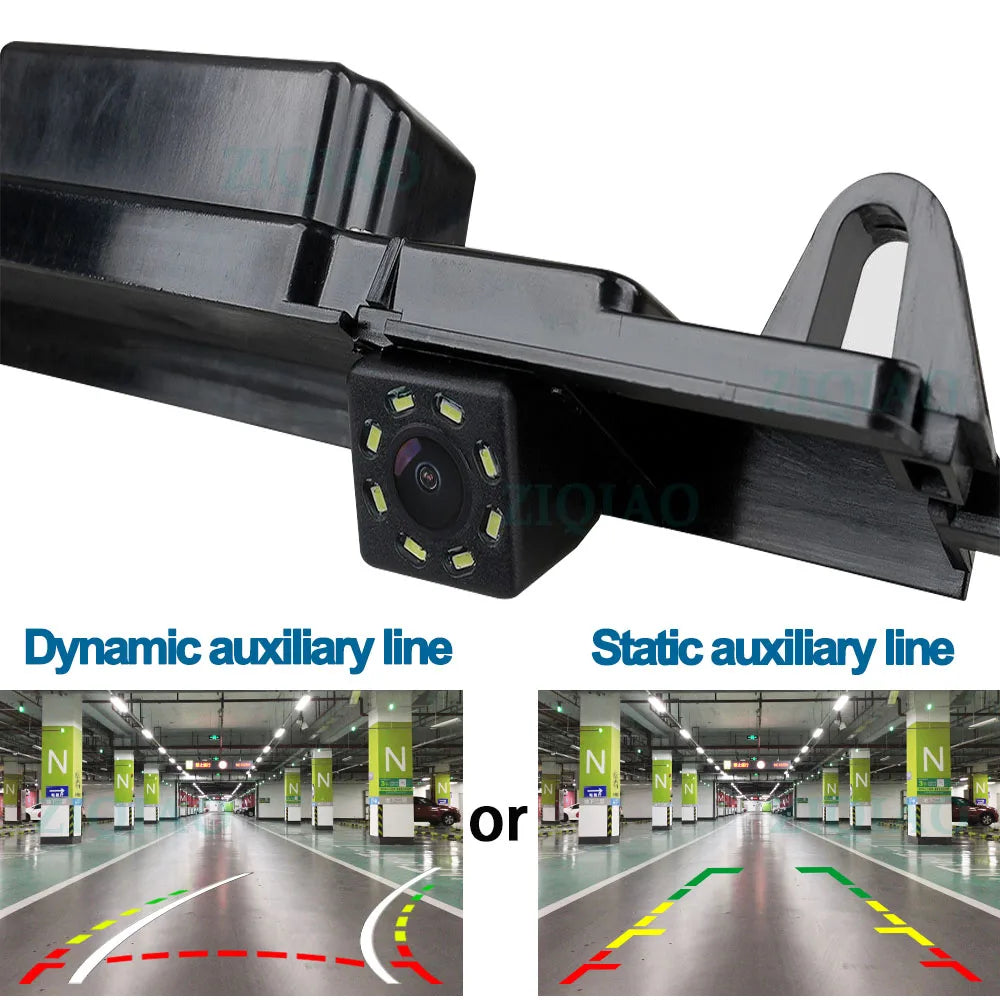

The differences between linear and dynamic parking guide line
Dynamic&Static aid line comparison.
Avoid Danger
Rear view camera is clearly visible day and night, allowing you to park safely.
Dynamic line ruler effect display HS003D
Automatically adjust the angle according to the car's moving position and speed.
140-170 Degrees Wide Angle
High resolution and wide viewing angle can check the blind spots during the reversing process to ensure your safe driving and avoid accidents.

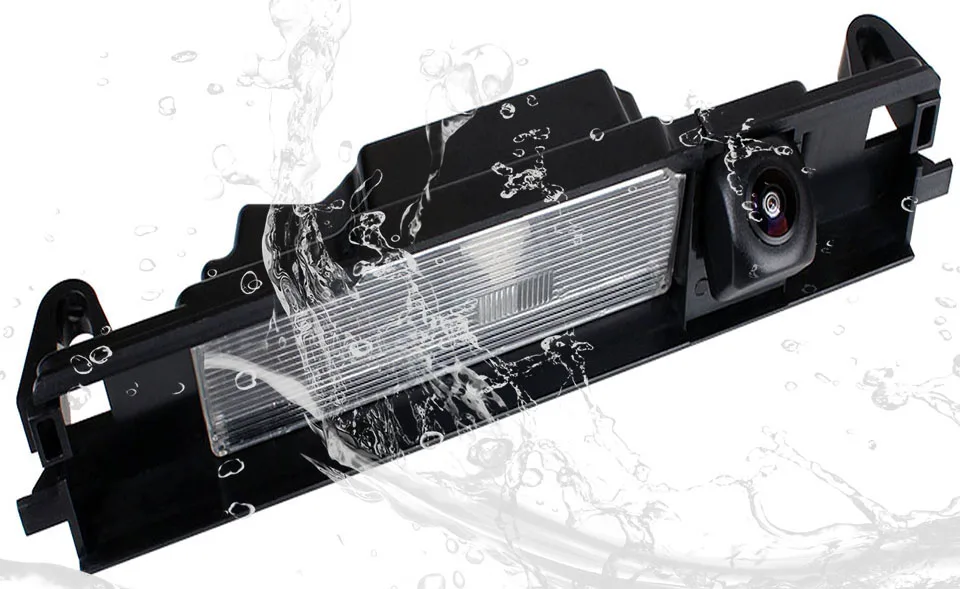

Waterproof Level IP68
IP68 high-grade waterproof design for use in extreme conditions.

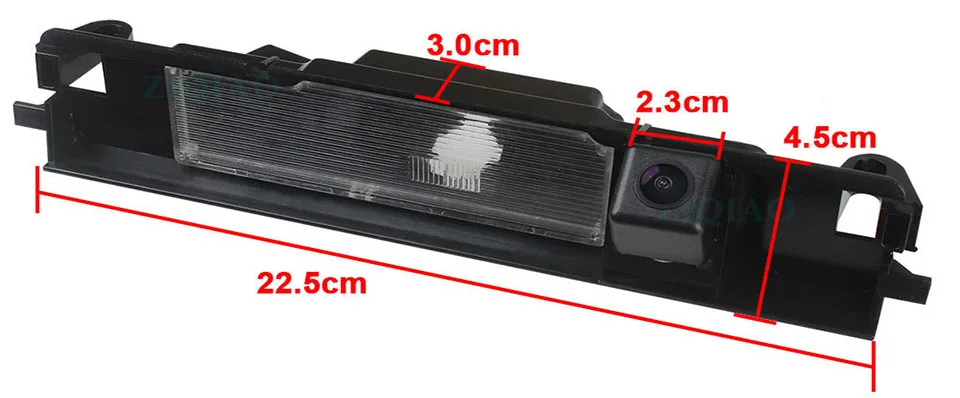

Product Size
Due to manual measurement, there may be an error of 1-2mm.
Product Parameters
HS003 HS003D
HS003A HS003B
If you don't want to use long video cable. We have wireless transmitter and receiver for rear view camera to replace video cable. Click the following picture to order.
Installation Method
The installation instructions are for reference only. It is recommended that a professional installer install the camera.

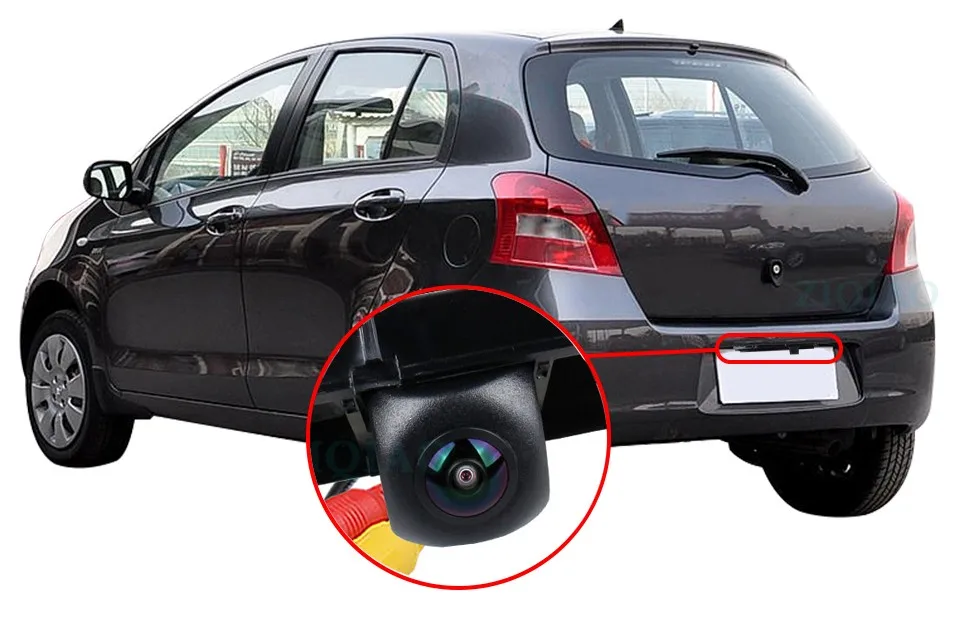

1. Install the camera in the license area of your car plate.
2. Adjust the lens of the camera to your best position.
3. Connect the video output(yellow wire) to the display.
4. Connect the power cable(red and black) to the power supply of the car's taillight, while reversing, the reversing monitoring system automatically start working, you can see the condition of the car tail clearly.
